ND NSK OE Front Hub Installation
Thank you for your purchase! These hubs are sourced directly from NSK Japan for you. If you have a question or issue please contact us ASAP. Please be sure to read this entire set of installation instructions through to the end and perform regular maintenance.
Installation guidelines - CONTACT US WITH any COMMENTS, QUESTIONS OR CONCERNS.
ALWAYS consult a professional if you are uncertain performing this work yourself.
-
For now we are referencing this as a guide but do not own the information
2016 – 2025 MX-5 – DriveLine/Axle
FRONT WHEEL HUB STEERING KNUCKLE REMOVAL/INSTALLATION
CAUTION:
-
Performing the following procedures could cause an open circuit in the front ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
-

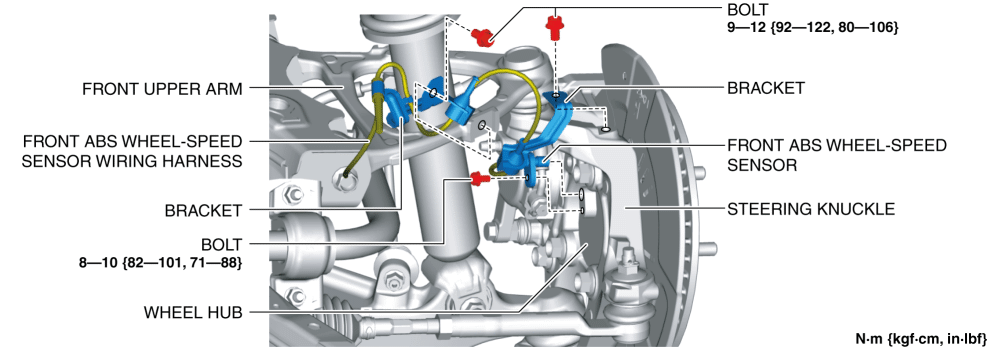

1. Remove the front ABS wheel-speed sensor and the bracket from the following parts and set it aside so that it does not interfere with the servicing.
-
Wheel hub
-
Steering knuckle
-
Front upper arm
2. Remove the front brake hose bracket from the front upper arm.

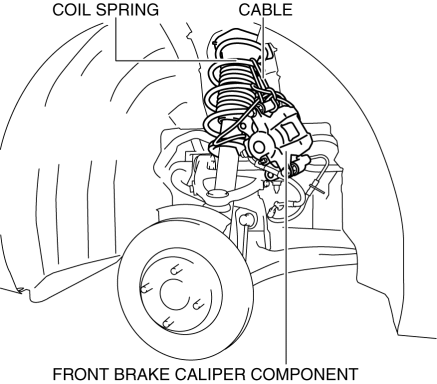

3. Remove the front brake caliper component and suspend it in a place out of the way using a cable.
4. Remove the front disc plate.
5. Disconnect the front stabilizer control link from the front lower arm.

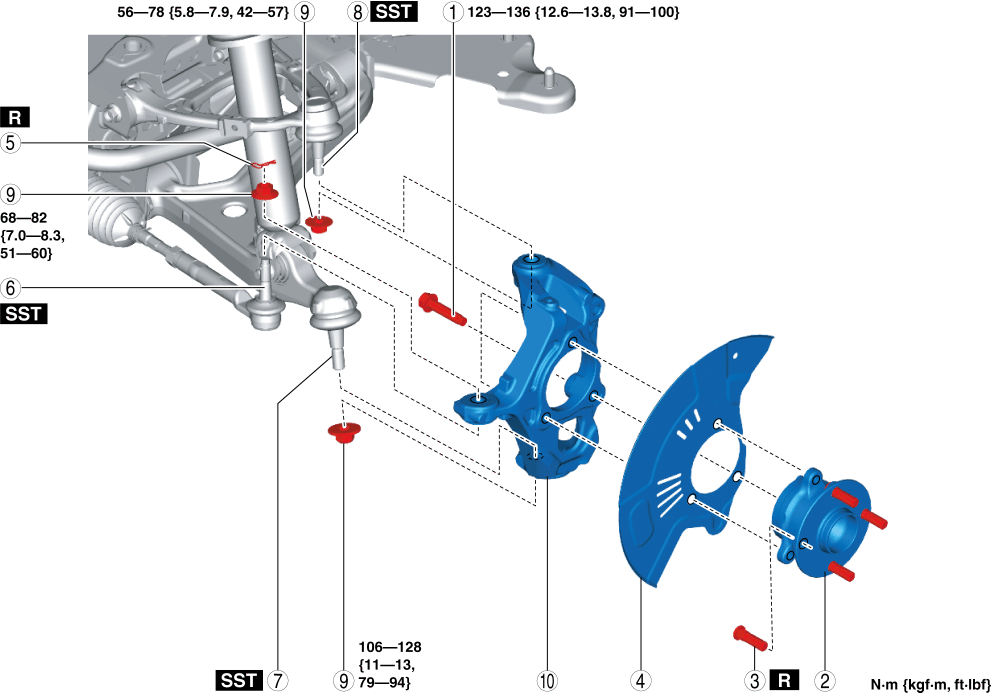

6. Remove in the order shown in the figure.
7. Install in the reverse order of removal.
8. Inspect the front wheel alignment and adjust it if necessary.
1 Bolt
2 Wheel hub
3 Front wheel hub bolt
4 Dust cover
5 Snap pin
6 Tie-rod end
7 Front lower arm ball joint
8 Front upper arm ball joint
9 Nut
10 Steering knuckle
Front wheel stud Removal Note
NOTE: Remove the front wheel stud only if there is any malfunction.
1. Remove the front wheel stud from the wheel hub component using a press ensuring that the hub flange is FULLY SUPPORTED.
Bolt Installation Note
1. Completely tighten the bolts shown in the figure to the specified torque with the vehicle lifted up.
-
Tightening torque 49 to 59 ft·lbf
Front wheel Hub Bolt Installation Note
1. Press in new front wheel hub bolt into the wheel hub component using a press while FULLY SUPPORTING the hub flange. You must ONLY USE wheel studs with the proper knurl diameter to avoid damaging the hub. If you are unsure of this, MiataHubs offers this service when purchasing.
-------------------------------------------------------------------------------------------------------------------------------------
IMPORTANT NOTE. It is recommended that you pay VERY close attention to the hubs & bearings at all times and through continued inspection & maintenance. If you notice any unusual sounds or feelings, IMMEDIATELY come into the pits and check for proper nut torque and bearing play. If you find a problem, please contact us.
-------------------------------------------------------------------------------------------------------------------------------------
Thanks again for your purchase and support of Miatahubs.com as we work to better the Miata community and make this chassis the best thing on racetracks worldwide, winning races and breaking hearts of higher dollar competitors. Feel free to call or text us with any questions or concerns, during install or at the track.
